Zigbee Smoke and CO Detector

Smart smoke and carbon monoxide detector for more safety

The Zigbee smoke and CO detector combines two important safety functions in one device. It detects both smoke development and dangerous carbon monoxide and warns early of possible dangers in the home. This makes it ideal for living rooms, bedrooms, hallways, kitchen areas or utility rooms.

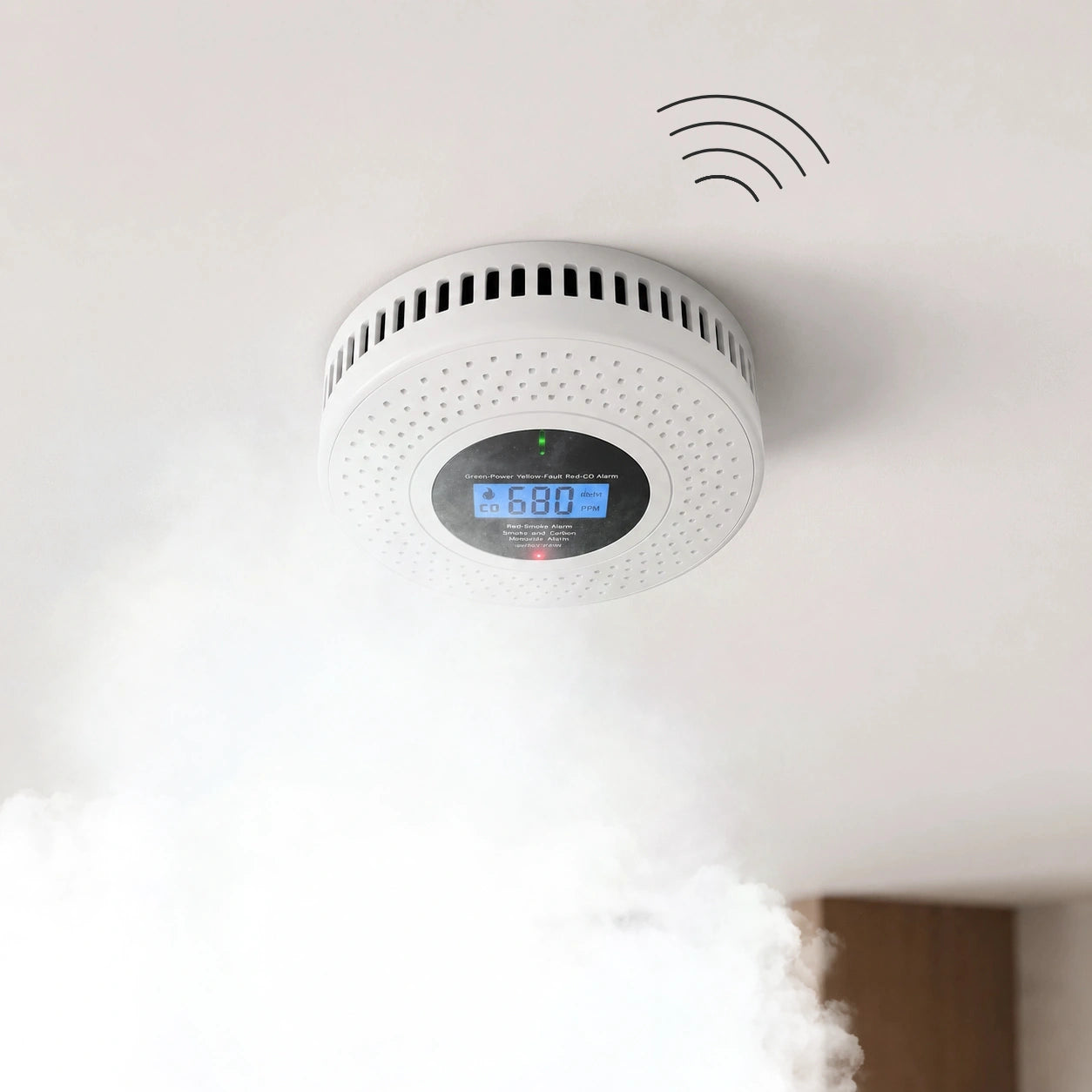

Reliable warning for smoke and CO danger

Thanks to precise sensor technology, the smoke and carbon monoxide detector reacts quickly to critical situations. In case of an alarm, a loud acoustic signal is triggered, and an optical light signal additionally supports the warning. This reliably alerts residents, even if danger arises unnoticed.

Real-time notifications via Smart Life App

In conjunction with a Zigbee gateway, the smart smoke detector sends alarm messages directly to the Smart Life App. This way, you receive real-time notifications on your smartphone, even when you're on the go. In addition, other Smart Home devices can be integrated and automations created.

Stable Zigbee connection with long battery life

Zigbee technology ensures a stable connection, low radio exposure and particularly energy-efficient operation. This makes the smoke and CO detector reliably usable in everyday life and offers a long battery life. A low battery alarm informs you in good time when the battery is low.

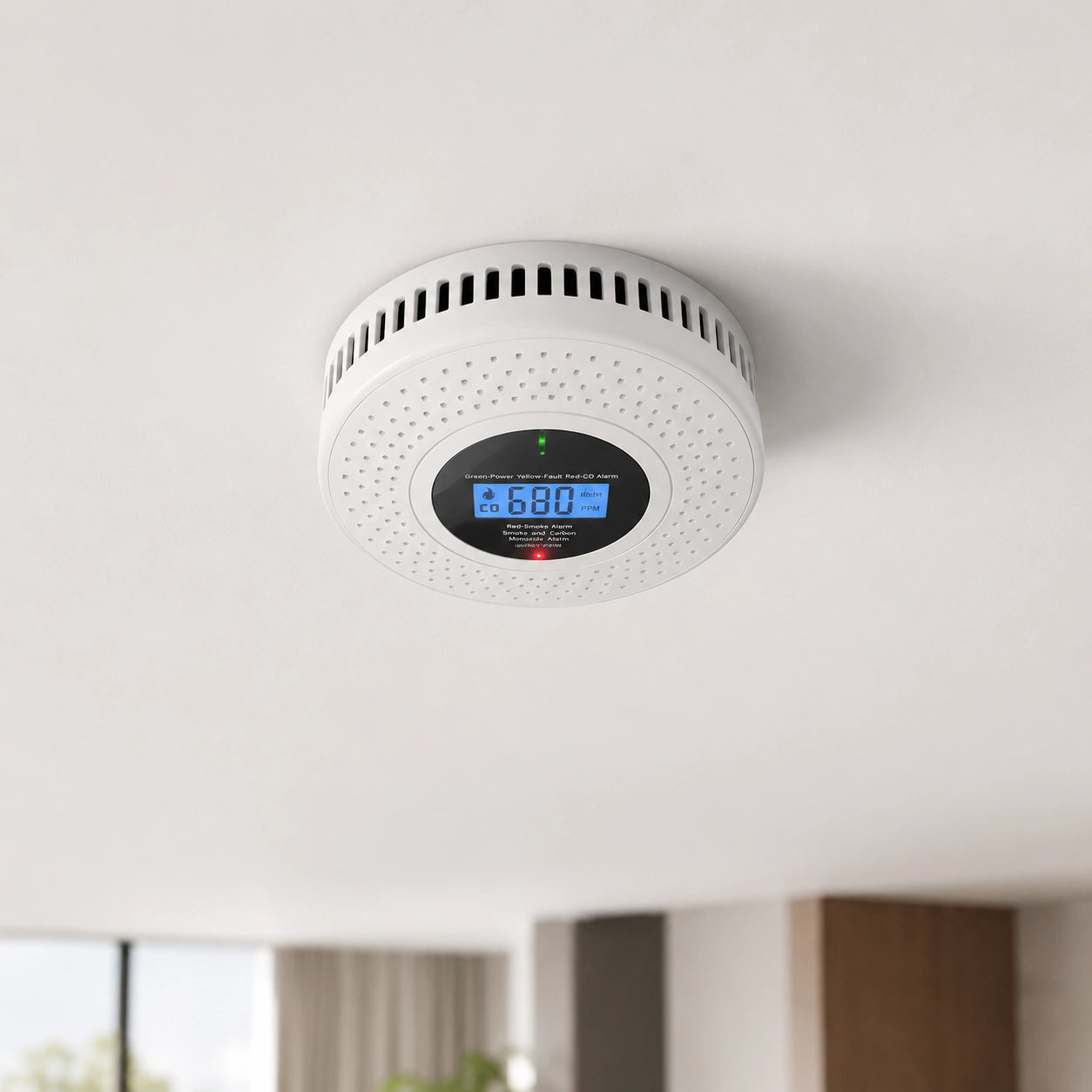

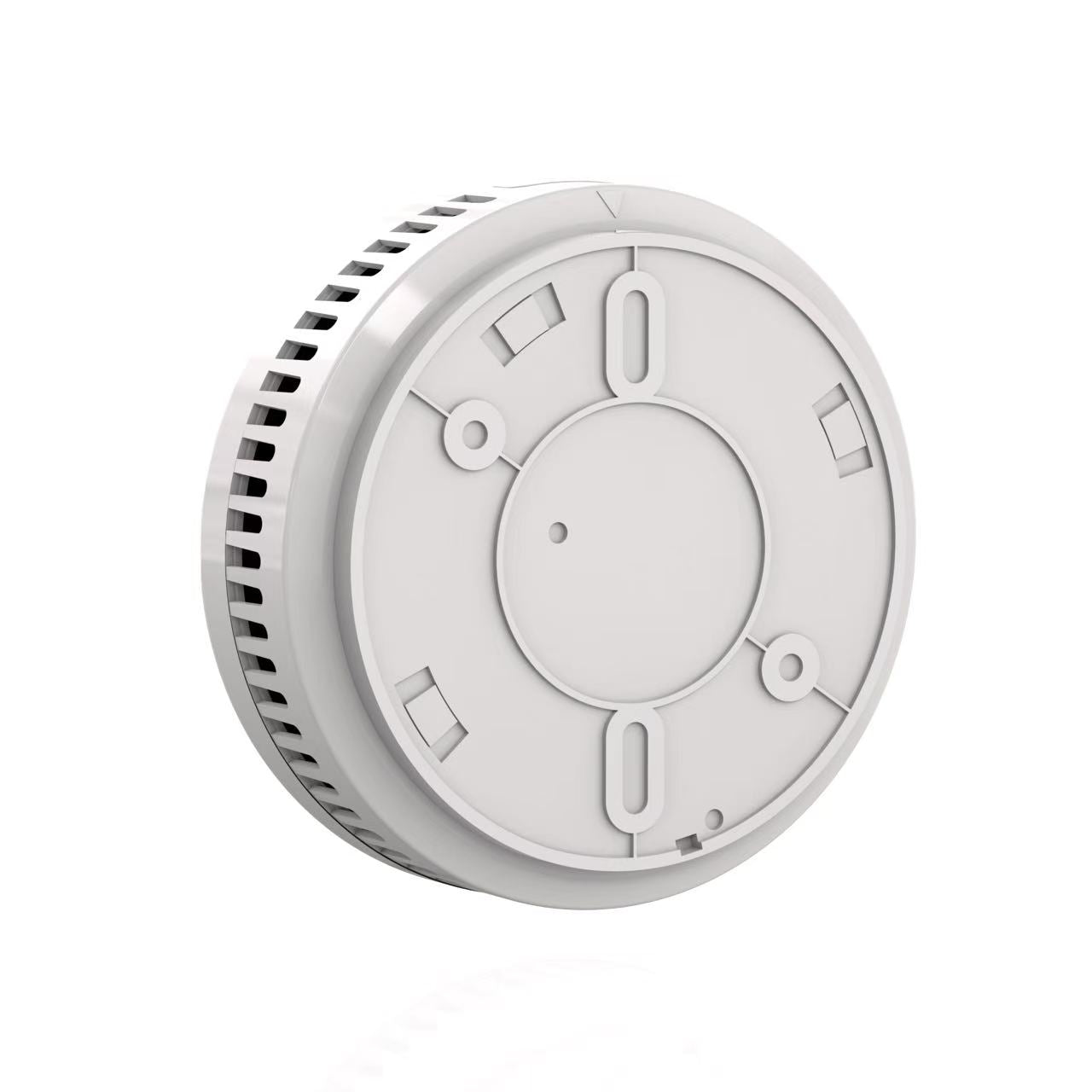

Easy installation and flexible Smart Home integration

The Zigbee smoke and carbon monoxide detector can be easily mounted on the ceiling and quickly integrated into existing smart home systems. A compatible Zigbee gateway is required for app connectivity. Ideal for anyone who wants to make their home safer, smarter and better connected.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* Information without guarantee

Technical Data

• Communication protocol: Zigbee 3.0
• Power supply: 2× 1.5V AA battery
• Smoke sensor: Photoelectric reflection
• Smoke alarm sensitivity: 0.25 dB/m
• Smoke alarm mute: approx. 10 minutes
• CO sensor: Electrochemical
• CO alarm sensitivity:
  within 60–90 min; 50 ppm
  within 10–40 min; 100 ppm
  within 3 min; 300 ppm
• Product lifespan: 10 years
• Quiescent current:< 50 µA
• Alarm current:< 70 mA
• Operating environment: -10 °C to +50 °C, < 95 % RH, non-condensing
• Storage/Transport environment: -10 °C to +50 °C, < 95 % RH, non-
  condensing
• Alarm sound: ≥ 85 dB at 3m distance
• Installation location: Ceiling or wall
• Detection area: max. 40 m² within a room
• Size: Φ 105 × 39 mm
• Weight: 180g

Scope of delivery

• 1x Zigbee Smoke and CO Detector
