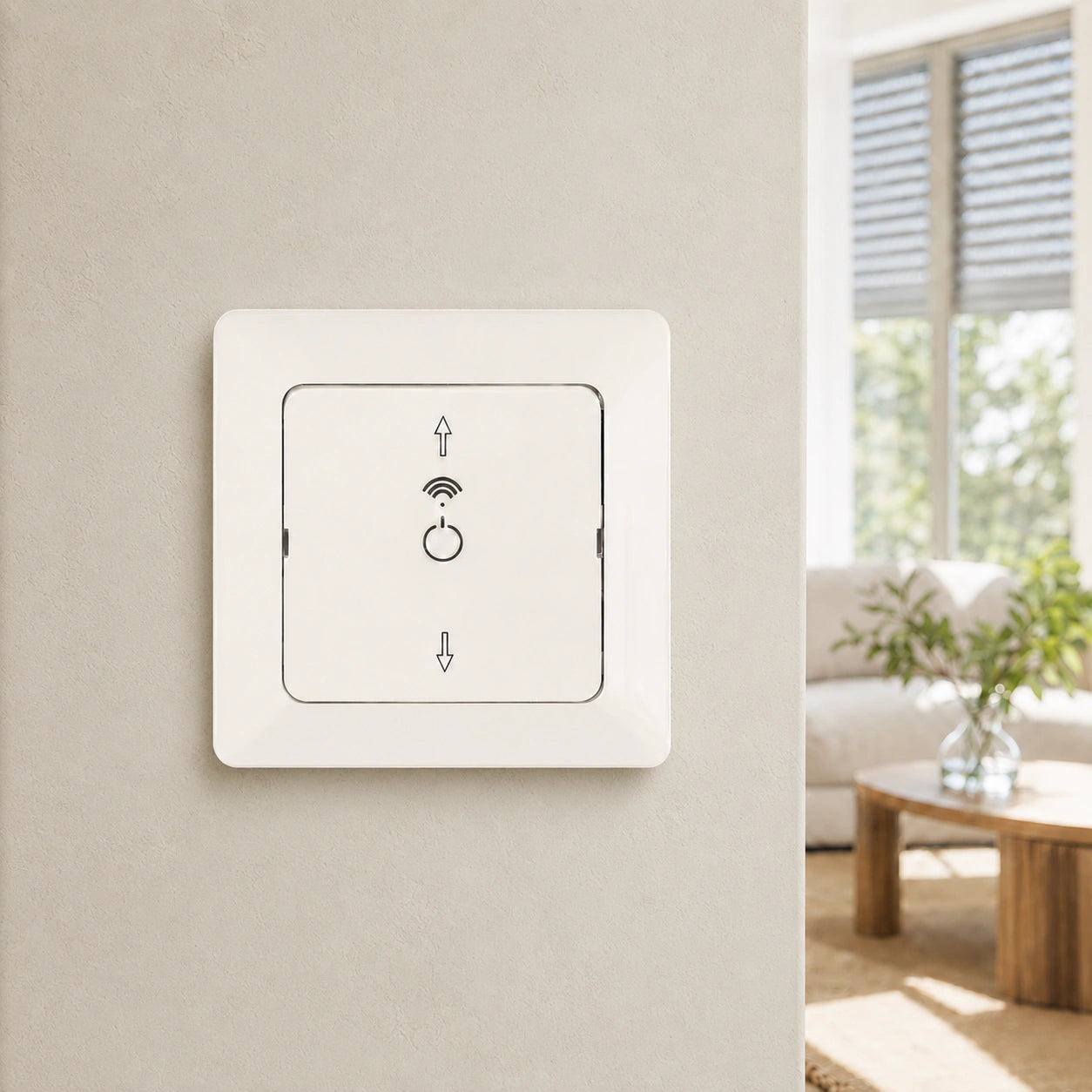

Roller Shutter Switch Merkur pure white

Smart Life Roller Shutter Switch

The Merkur roller shutter switch connects directly to your Wi-Fi [2.4 GHz] - no additional gateway is required. This allows you to quickly integrate the Wi-Fi roller shutter switch into your existing network and maintain full control over your shading.

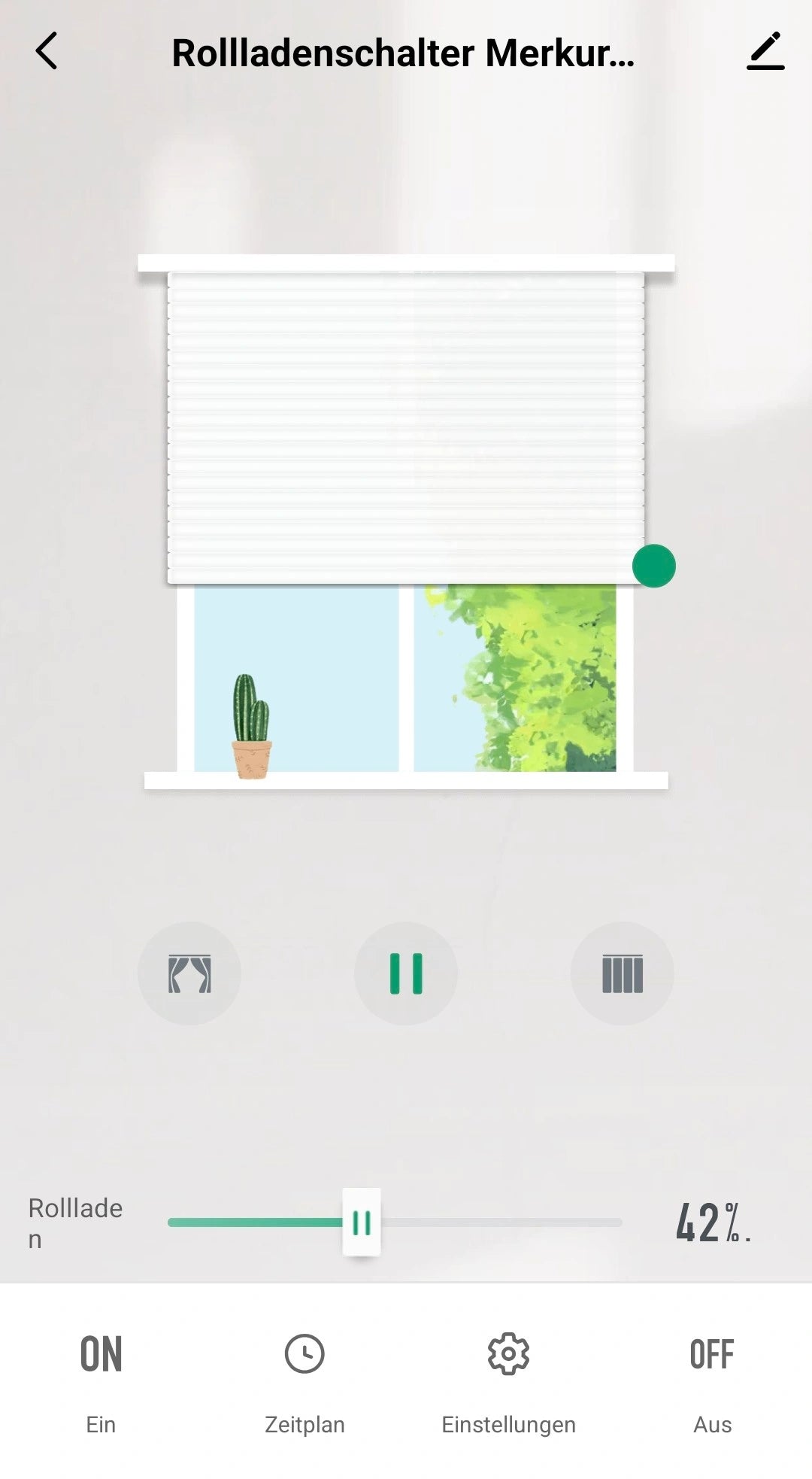

App features: Timers & Scenes

Use the Smart Life app to create individual schedules, automations, and scenes. Group controls and schedules ensure automatic raising and lowering at defined times, improving comfort and energy efficiency.

Precise percentage control & calibration

The switch allows for percentage-based opening and closing (0–100%) for precise light control. Calibration of the end positions (see instructions) ensures that the positions are reliable and reproducible – ideal for differentiated roller shutter control.

Installation & Dimensions

The Merkur roller shutter switch fits into all standard recessed boxes and is compatible with multi-frame systems (external dimensions 80 × 80 mm, switch cover 54 × 54 mm). The standard compatibility allows for clean retrofitting without additional installation effort.

Haptics & Voice Control

The mechanical push-button switch with spring mechanism provides tactile feedback and local operation even without an app. At the same time, the switch supports voice commands via Amazon Alexa and Google Home for hands-free control.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* No guarantee given

Scope of delivery

• 1x WLAN Bluetooth roller shutter switch incl. switch cover and 1-gang cover frame

Technical details

• Communication: Wlan 802.11 b/g/n
• Power supply: 230V
• Power: Max. 600W
• Size (L x W x H): 80 x 80 x 35 mm
• Color: Ultra White, Pure White RAL9010

Does the switch also work manually?

Manual functionality is always available.

Can a percentage setting be made via Alexa voice command?

Unfortunately, this is not possible. Via voice command, you can only move the roller shutters up and down. In the future, we will offer a roller shutter switch type with percentage setting.

Can several switches be grouped together?

You can create a group in the app and combine the roller shutter switches.

Can the smart roller shutter switches also be set to close only halfway, for example? Or is it only fully open and fully closed?

The desired position of the blinds can be set in the app.

Why can't I see the position of the roller shutters in the app?

The exact position values are not yet available.

Instruction manual

Merkur Series Connection when Flashing Slowly (Video)

Merkur Series Connection when flashing quickly (Video)

Create a Scene & Control Alexa (Video)

Quick Calibration Guide
